Tag Synchronization for Owned By in AWS

Connector Applicability

Applies to Source Connectors

AWS

Applies to Destination Connectors

All

Assumptions

These instructions assume you have already setup a source connection in CI Sync for AWS using the CI Sync instructions here: or Add AWS to SaaS Agent.

Pre-Read

Syncfish recommend customers read the following documentation before changing the Connection Setting/s described below.

  1. Understanding the use of CI Sync Connection Settings

  2. Rule 10 - AWS Tag Synchronization

Locating and Amending the Connection Setting in the CI Sync UI

  1. Navigate to the Settings page

  2. Under the Source Connections heading (list), locate your AWS connection.

  3. Click the Update link on the right hand side of the AWS connection.

  4. Scroll down and locate the Section Heading and view the Individual Settings.

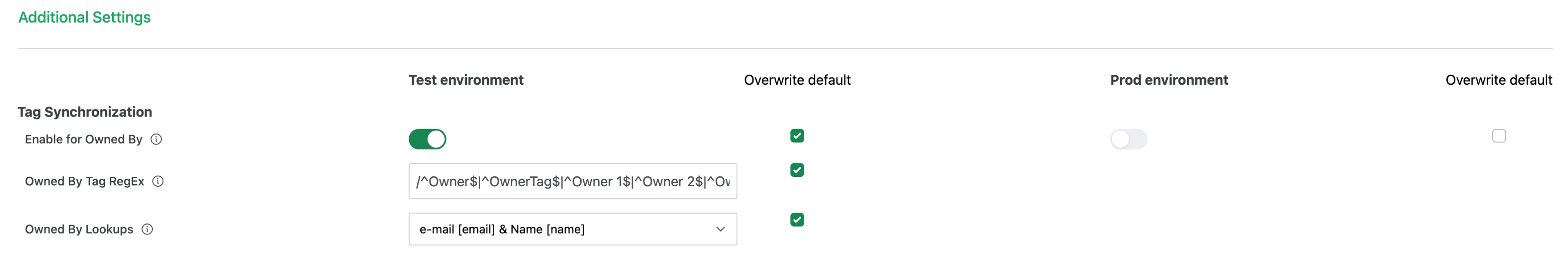

CleanShot 2025-09-16 at 15.22.04@2x-20250916-052303.png

The screen shot is provided only as sample to assist when reading this page. The state of your own CI Sync UI will depend on whether you are starting from the CI Sync default position or if you have already amended one/more of the settings.

  1. Tick the Override default box/boxes and then use the sliders related to the individual settings. The following table elaborates any further information about these particular settings.

Setting

Type

Additional Notes

Enable for Owned By

Slider

If enabled, defined Tags will be synchronized to the owned_by field against CIs in the CMDB.

When enabled, the Owned By Tag RegEx field will be exposed (see below).

Owned By Tag RegEx

RegEx

Enter a Regular Expression that matches one or more tag names in AWS (i.e. one or more tags that represent the Owned By associated with the AWS resource).

Example RegEx

/^Owner$|^OwnerTag$|^Owner 1$|^Owner 2$|^Owner1$|^Owner2$/

RegEx Explained

This RegEx will identify tags named “Owner”, “OwnerTag”, “Owner 1”, “Owner 2”, “Owner1” or “Owner2” (i.e. six variations) and sync’d the associated values into ServiceNow.

Sync Behaviour and ServiceNow Data Explained

  1. If there are multiple tags that match the defined regEx for a field, the value within each tag will be searched against the ServiceNow sys_user table. The CI Sync lookup ranks the results to return active users first.

  2. If there are multiple values within a tag (including multiple tags), either comma or semi-colon separated, the individual values will be extracted and searched individually against the ServiceNow sys_user table with the first matching value returned.

  3. Once a match is returned, CI Sync will store the matching sys_user value against the owned_by field on the CI. If not match is found, the owned_by attribute on the CI will be blank.

  4. Regardless of whether a match is found (or not), CI Sync will also populate the ServiceNow cmdb_key_value table with the raw tag data (i.e. an entry will be created in cmdb_key_value for each tag and it’s raw value).

By populating both the specific field on the CI (e.g. the cost_center attribute, the environrment attribute or the owned_by attribute) and the cmdb_key_value table (i.e. the related list against the CI), customers can identify CIs where the specific field is not populated but the related list of tags contains a near match.

This approach allows customers to identify data quality issues in the source system using simple reports, dashboards or workflows within ServiceNow.

Owned By Lookups

Choicelist

Select one of the available choicelist items which control sys_user attribute/s CI Sync searches using the value/s in the tag.

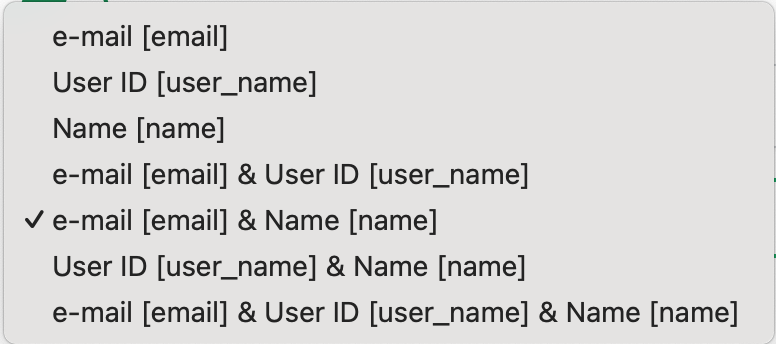

See below for the available choices.

CleanShot 2025-09-16 at 15.24.07@2x-20250916-052411.png

  1. After modify the settings, scroll to the bottom of the page, tick the “I consent…” checkbox and finally click the Save connection button.

  2. You can now run a sync job and the amended settings will be applied causing the CI Sync Data Sync rules to be modified accordingly.

Importantly

Make sure you consciously override the setting against either your TEST or PROD environment (i.e. your TEST vs PROD sync jobs).

For more information on how to use TEST vs PROD Connection Settings please read Understanding the use of CI Sync Connection Settings.

Syncfish strongly recommend making changes for TEST environment/sync jobs first. Only modify PROD related settings after thoroughly validating the intended results in TEST.
