Tag Synchronization for Environment in AWS

Connector Applicability

Applies to Source Connectors

AWS

Applies to Destination Connectors

All

Assumptions

These instructions assume you have already setup a source connection in CI Sync for AWS using the CI Sync instructions here: or Add AWS to SaaS Agent.

Pre-Read

Syncfish recommend customers read the following documentation before changing the Connection Setting/s described below.

  1. Understanding the use of CI Sync Connection Settings

  2. Rule 10 - AWS Tag Synchronization

Locating and Amending the Connection Setting in the CI Sync UI

  1. Navigate to the Settings page

  2. Under the Source Connections heading (list), locate your AWS connection.

  3. Click the Update link on the right hand side of the AWS connection.

  4. Scroll down and locate the Section Heading and view the Individual Settings.

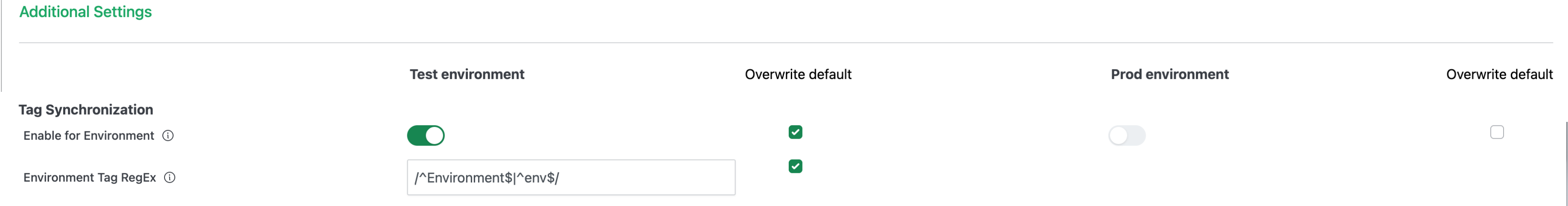

CleanShot 2025-09-16 at 15.10.20@2x-20250916-051106.png

The screen shot is provided only as sample to assist when reading this page. The state of your own CI Sync UI will depend on whether you are starting from the CI Sync default position or if you have already amended one/more of the settings.

  1. Tick the Override default box/boxes and then use the sliders related to the individual settings. The following table elaborates any further information about these particular settings.

Setting

Type

Additional Notes

Enable for Environment

Slider

If enabled, defined Tags will be synchronized to the environment field against CIs in the CMDB.

When enabled, the Environment Tag RegEx field will be exposed (see below).

Environment Tag RegEx

RegEx

Enter a Regular Expression that matches one or more tag names in AWS (i.e. one or more tags that represent the Environment associated with the AWS resource).

Example RegEx

/^Environment$|^env$/

RegEx Explained

This RegEx will identify tags named “Environment” or “env” (i.e. two variations) and sync’d the associated values into ServiceNow.

Sync Behaviour and ServiceNow Data Explained

  1. If there are multiple tags that match the defined regEx for a field, the value within each tag will be searched against a CI Sync “Value Map”. Of Note:

    1. The default CI Sync Value Map transforms tag values only for the three OOTB ServiceNow sys_choice cmdb_ci values for Environment as “Test”, “Development” and “Production”.

    2. Syncfish can implement customer specific Value Maps to transform the content of Environment related tags to the OOTB or customer specific values in sys_choice.

  2. If there are multiple values within a tag (including multiple tags), either comma or semi-colon separated, the individual values will be extracted and searched individually against the CI Sync “Value Map” (and therefore to ServiceNow sys_choice) with the first matching value returned.

  3. Once a match is returned, CI Sync will store the matching sys_choice value against the environment field on the CI. If not match is found, the environment attribute on the CI will be blank.

  4. Regardless of whether a match is found (or not), CI Sync will also populate the ServiceNow cmdb_key_value table with the raw tag data (i.e. an entry will be created in cmdb_key_value for each tag and it’s raw value).

By populating both the specific field on the CI (e.g. the cost_center attribute, the environrment attribute or the owned_by attribute) and the cmdb_key_value table (i.e. the related list against the CI), customers can identify CIs where the specific field is not populated but the related list of tags contains a near match.

This approach allows customers to identify data quality issues in the source system using simple reports, dashboards or workflows within ServiceNow.

  1. After modify the settings, scroll to the bottom of the page, tick the “I consent…” checkbox and finally click the Save connection button.

  2. You can now run a sync job and the amended settings will be applied causing the CI Sync Data Sync rules to be modified accordingly.

Importantly

Make sure you consciously override the setting against either your TEST or PROD environment (i.e. your TEST vs PROD sync jobs).

For more information on how to use TEST vs PROD Connection Settings please read Understanding the use of CI Sync Connection Settings.

Syncfish strongly recommend making changes for TEST environment/sync jobs first. Only modify PROD related settings after thoroughly validating the intended results in TEST.
