Tag Synchronization for Assigned To in AWS

AWS

All

Setting

Type

Additional Notes

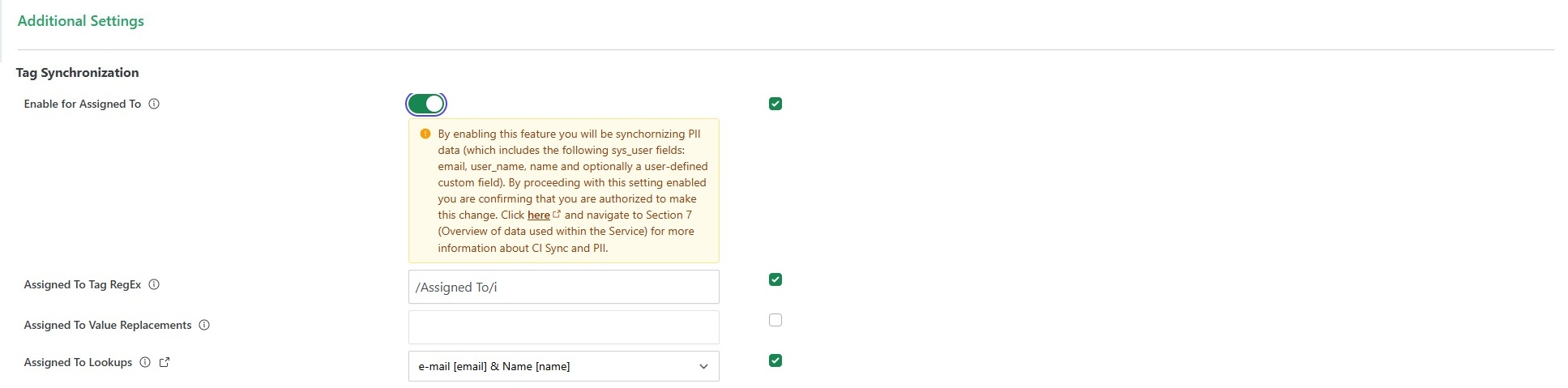

Enable for Assigned To

Slider

If enabled, defined Tags will be synchronized to the assigned_to field against CIs in the CMDB.

When enabled, the Assigned To Tag RegEx field will be exposed (see below).

Assigned To Tag RegEx

RegEx

Enter a Regular Expression that matches one or more Tag names in AWS (i.e. one or more Tags that represent the Assigned To associated with the AWS resource).

Example RegEx

/^Assignee$|^AssigneeTag$|^AssignedTo 1$|^AssignedTo 2$|^AssignedTo1$|^AssignedTo2$/

RegEx Explained

This RegEx will identify Labels (or Tags) named “Assignee”, “AssigneeTag”, “AssignedTo 1”, “AssignedTo 2”, “AssignedTo1” or “AssignedTo2” (i.e. six variations) and sync’d the associated values into ServiceNow.

Sync Behaviour and ServiceNow Data Explained

1. If there are multiple Tags that match the defined regEx for a field, the value within each Tag will be searched against the ServiceNow sys_user table. The CI Sync lookup ranks the results to return active users first.

2. If there are multiple values within a Tag (including multiple Tags), either comma or semi-colon separated, the individual values will be extracted and searched individually against the ServiceNow sys_user table with the first matching value returned.

3. Once a match is returned, CI Sync will store the matching sys_user value against the assigned_to field on the CI. If not match is found, the assigned_to attribute on the CI will be blank.

4. Regardless of whether a match is found (or not), CI Sync will also populate the ServiceNow cmdb_key_value table with the raw label (tag) data (i.e. an entry will be created in cmdb_key_value for each Tag and it’s raw value).

Assigned to Value Replacements

Choicelist

For context in AWS: AWS is restrictive as to the values allowed in Tags, therefore CI Sync provides support for transforming AWS Tags into valid user names. For user names: as AWS does not allow for the entry of space characters in Label values, CI Sync provides for the substitution of either “-” or “_” with a space character when searching the sys_user.name field.

This setting allows customers to define a search and replace RegEx express that acts on the values read from a given Tag.

Enter a Regular Expression that defines the search string and the replacement value string.

The RegEx format consists of a two element array. The first element is the search RegEx and the second element is the replacement text.

Example RegEx

[['/dot/', '.'],['/at/', '@']]

RegEx Explained

This RegEx will replace the literal text “dot” with a “.” (period) character, and will replace the literal text “at” with the “@” symbol. For example “AndrewdotKentatsyncfishdotcomdotau” will be transformed to “Andrew.Kent@syncfish.com.au” (without the quotes.. they are just for reference in this documentation)

Assigned to Lookups

Choicelist

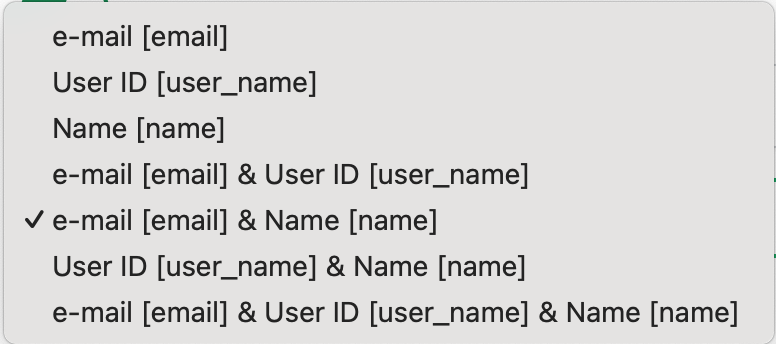

Select one of the available choicelist items which control sys_user attribute/s CI Sync searches using the value/s in the tag.

See below for the available choices.

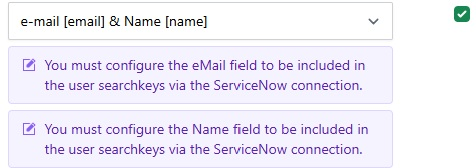

In this example if you select ‘e-mail [email] & Name [name]' you will see a message as per below explaining that you must select the corresponding options in the ServiceNow destination connection 'User Synchronization’ section. Please refer to the document linked below.

Define a User oriented attribute when using User Synchronization from a Source System in ServiceNow

If the corresponding selection in ServiceNow is not made the sync job will error.
