Location Data Handling for Lansweeper Cloud

Connector Applicability

Applies to Source Connectors	Lansweeper Cloud
Applies to Destination Connectors	All

Assumptions

These instructions assume you have already setup a source connection in CI Sync for Lansweeper Cloud using the CI Sync instructions here: Add Lansweeper Cloud to SaaS Agent.

Pre-Read

Syncfish recommend customers read the following documentation before changing the Connection Setting/s described below.

Understanding the use of CI Sync Connection Settings
Rule 8 - Automatic Creation of new Location Master Data Records in ServiceNow for Lansweeper Cloud
Rule 9 - Standard Location Determination Rules for Assets Discovered by the Traditional Lansweeper Scanner and replicated from On-Prem SQL to Lansweeper Cloud
Rule 9a - Standard Location Determination Rules for Assets Discovered by Lansweeper Network Discovery and stored in Lansweeper Cloud
Rule 4 – Custom Asset Location Determination Rules

Locating and Amending the Connection Setting in the CI Sync UI

Navigate to the Settings page
Under the Source Connections heading (list), locate your Lansweeper Cloud connection.
Click the Update link on the right hand side of the Lansweeper Cloud connection.
Scroll down and locate the Section Heading and view the Individual Settings.

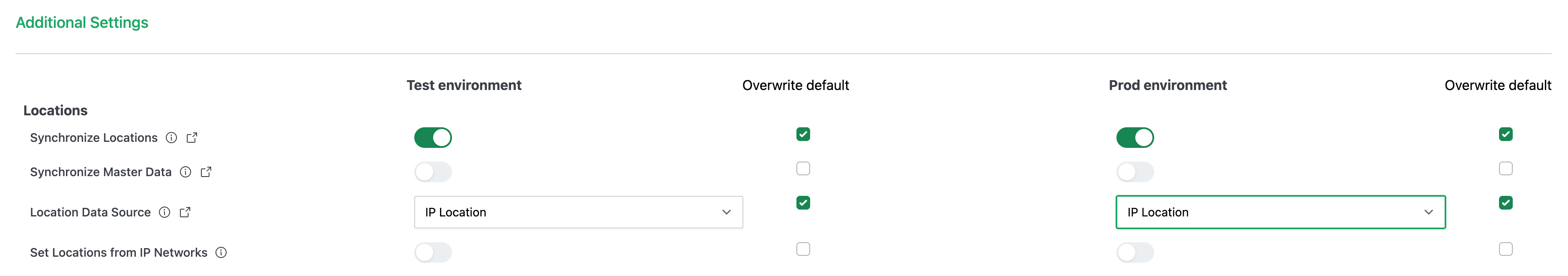

CleanShot 2025-11-21 at 14.43.15@2x-20251121-044400.png

The screen shot is provided only as sample to assist when reading this page. The state of your own CI Sync UI will depend on whether you are starting from the CI Sync default position or if you have already amended one/more of the settings.

Tick the Override default box/boxes and then use the sliders related to the individual settings. The following table elaborates any further information about these particular settings.

Setting	Type	Additional Notes
Synchronize Locations	Slider	When enabled, the Location attribute will be set on each CI as a sys_id reference to the ServiceNow cmn_location table. If not enabled, the Location attribute will not be set on each CI.
Synchronize Master Data	Slider	When enabled, unique Location values read from Lansweeper (using the Location Data Source described in the next setting) will be inserted to the Servicenow cmn_location table (i.e. the cmn_location table will be extended with new values read from Lansweeper). If not enabled, the cmn_location table will not be extended with new Location values read from Lansweeper.
Location Data Source	Choicelist	This setting, which is only available if the above settings are in use, informs CI Sync which method/record sets in Lansweeper will be used to determine the Locations values for the above two rules. These options are available: IP Location Asset Location Custom Location Please read the following pages to understand the details and complexity of Lansweeper Location handling and CI Sync works for each of the above options. For customers using the traditional Lansweeper Scanner (the one that persists data to On-Prem SQL), please read Rule 9 - Standard Location Determination Rules for Assets Discovered by the Traditional Lansweeper Scanner and replicated from On-Prem SQL to Lansweeper Cloud. For customers using the newer Lansweeper Network Discovery Tool (the one the only persists data to Lanweeper Cloud), please read Rule 9a - Standard Location Determination Rules for Assets Discovered by Lansweeper Network Discovery and stored in Lansweeper Cloud. If in doubt, please contact Syncfish Support as there is some complexity in this topic.
Set Locations from IP Networks	Slider	This setting is specifically designed for customers using the new Lansweeper Network Discovery Tool which only persists data to Lansweeper Cloud. The setting is only applicable to the IP Location data source described above. The setting also relies on using the “Enable Synchronization of IP Location Master Data“ setting which is defined on the Lansweeper On-Prem source connection in the CI Sync SaaS UI. Enabling this setting causes CI Sync to compare the IP Address of the asset against the Lansweeper On-Prem IP Location definitions which CI Sync has read thanks to the connection setting called “Enable Synchronization of IP Location Master Data“ (which is defined on the Lansweeper On-Prem source connection in the CI Sync SaaS UI). Please read Rule 9a - Standard Location Determination Rules for Assets Discovered by Lansweeper Network Discovery and stored in Lansweeper Cloud to understand the details and complexity of Lansweeper IP Location handling in Lansweeper Cloud with the Lansweeper Network Discovery Tool. If in doubt, please contact Syncfish Support as there is some complexity in this topic.

After modify the settings, scroll to the bottom of the page, tick the “I consent…” checkbox and finally click the Save connection button.
You can now run a sync job and the amended settings will be applied causing the CI Sync Data Sync rules to be modified accordingly.

Importantly

Make sure you consciously override the setting against either your TEST or PROD environment (i.e. your TEST vs PROD sync jobs).

For more information on how to use TEST vs PROD Connection Settings please read Understanding the use of CI Sync Connection Settings.

Syncfish strongly recommend making changes for TEST environment/sync jobs first. Only modify PROD related settings after thoroughly validating the intended results in TEST.
