Convert Windows OS Version for Lansweeper Cloud

Connector Applicability

Applies to Source Connectors

Lansweeper Cloud

Applies to Destination Connectors

All

Assumptions

These instructions assume you have already setup a source connection in CI Sync for Lansweeper Cloud using the CI Sync instructions here: Add Lansweeper Cloud to SaaS Agent.

Pre-Read

Syncfish recommend customers read the following documentation before changing the Connection Setting/s described below.

  1. Understanding the use of CI Sync Connection Settings

  2. Add Page - Rule 24 - Windows Operating System (OS) Version Handling for Lansweeper Cloud - Customer Support - Confluence

Locating and Amending the Connection Setting in the CI Sync UI

  1. Navigate to the Settings page.

  2. Under the Source Connections heading (list), locate your Lansweeper Cloud connection.

  3. Click the Update link on the right-hand side of the Lansweeper Cloud connection.

  4. Scroll down and locate the Section Heading and view the Individual Settings.

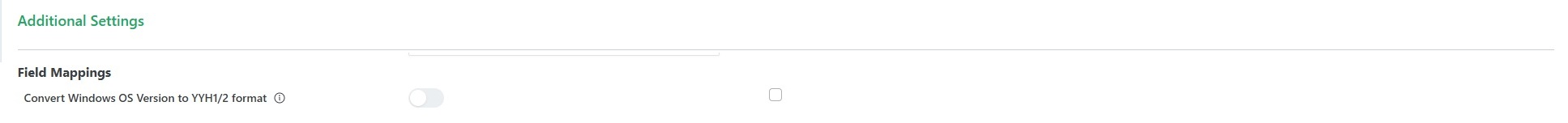

Windows os version mapping 2.jpg

The screen shot is provided only as sample to assist when reading this page. The state of your own CI Sync UI will depend on whether you are starting from the CI Sync default position or if you have already amended one/more of the settings.

  1. Tick the Override default box/boxes and then use the sliders related to the individual settings. The following table elaborates any further information about these particular settings.

Setting

Type

Additional Notes

Convert Windows OS Version to YYH1/2 format

Slider

If not enabled, CI Sync will pass through the Windows OS Version value in its native format (i.e. a value such as 10.0.26200.7623).

If enabled, CI Sync will transform the Major Version number from Lansweeper Cloud which is matched against a mapping table to return the YYH1/2 formatted version number for the operating system.
For example: given the Windows version 10.0.26200.7623, the main release number (the third value) “26200” is matched against:

  • 19042 → 20H2

  • 19043 → 21H1

  • 22000 → 21H2

  • 19044 → 21H2

  • 22621 → 22H2

  • 19045 → 22H2

  • 22631 → 23H2

  • 26100 → 24H2

  • 26200 → 25H2

In this example, CI Sync will persist 25H2 as the Windows Operating System Version value on the related Windows CIs.

  1. After modifying the settings, scroll to the bottom of the page, tick the “I consent…” checkbox and finally click the Save connection button.

  2. You can now run a sync job and the amended settings will be applied causing the CI Sync Data Sync rules to be modified accordingly.

Importantly

Make sure you consciously override the setting against either your TEST or PROD environment (i.e. your TEST vs PROD sync jobs).

For more information on how to use TEST vs PROD Connection Settings please read Understanding the use of CI Sync Connection Settings.

Syncfish strongly recommend making changes for TEST environment/sync jobs first. Only modify PROD related settings after thoroughly validating the intended results in TEST.
