VOIP phones can be separated from Android Handheld Device CIs for InTune

Connector Applicability

Applies to Source Connectors

InTune

Applies to Destination Connectors

All

Assumptions

These instructions assume you have already setup a source connection in CI Sync for InTune using the CI Sync instructions here: Add InTune to SaaS Agent.

Pre-Read

Syncfish recommend customers read the following documentation before changing the Connection Setting/s described below.

  1. Understanding the use of CI Sync Connection Settings

  2. Rule 2 - Mapping of InTune Corporate and BYOD Asset Types to ServiceNow CMDB CI Classes

  3. Rule 12 - Separation of VOIP phones and Android devices for InTune

  4. BYOD Handling for InTune

Locating and Amending the Connection Setting in the CI Sync UI

  1. Navigate to the Settings page

  2. Under the Source Connections heading (list), locate your InTune connection.

  3. Click the Update link on the right-hand side of the InTune connection.

  4. Scroll down and locate the Section Heading and view the Individual Settings.

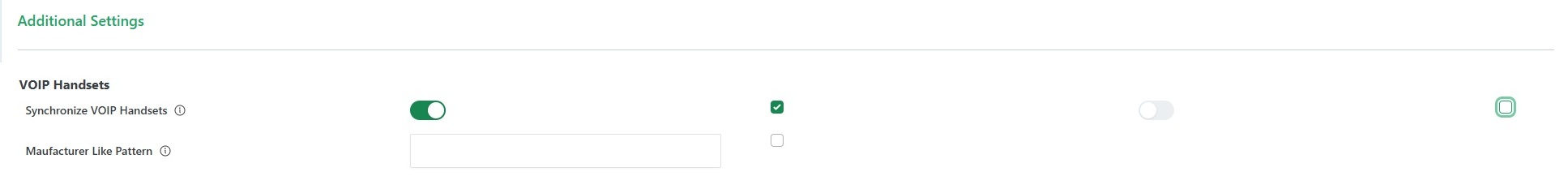

VOIP handsets 2.jpg

The screen shot is provided only as sample to assist when reading this page. The state of your own CI Sync UI will depend on whether you are starting from the CI Sync default position or if you have already amended one/more of the settings.

  1. Tick the Override default box/boxes and then use the sliders related to the individual settings. The following table elaborates any further information about these particular settings.

Setting

Type

Additional Notes

Synchronize VOIP Handsets

Slider

When enabled, the Like expression field will be exposed (see below).

Additionally, CI Sync shows VOIP Handsets in Step 2 (Selections) when creating a synchronization job (see the screen shot below for the UI behavior).

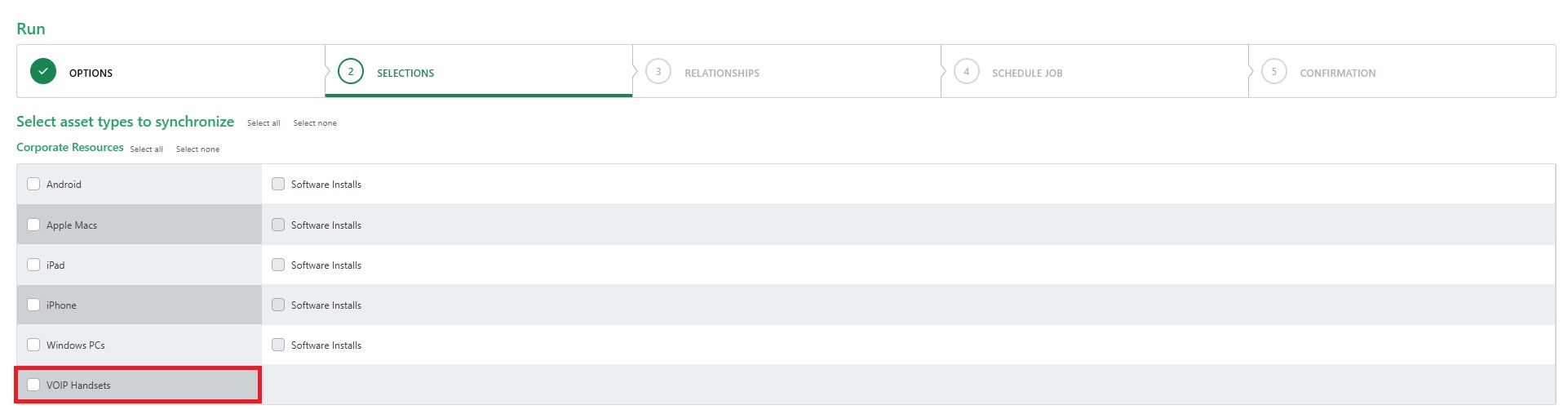

VOIP handsets 3.jpg


Manufacturer Like Pattern

Like expression

If the prior setting is enabled, this Like expression will be applied to the Manufacturer Like Pattern field to match the manufacturer name of the VOIP handsets:

Example Like expression

Poly

SQL Like patterns can include a % wildcard as follows:

  • “Poly” - would match any manufacturer exactly matching “Poly”

  • “Poly%” - would match any manufacturer starting with “Poly”

  • “%Poly%” - would match any manufacturer containing “Poly”

  • “%Poly” - would match any manufacturer ending with “Poly”

NB: All like expressions are matched case-insensitively.

  1. After modifying the settings, scroll to the bottom of the page, tick the “I consent…” checkbox and finally click the Save connection button.

  2. You can now run a sync job and the amended settings will be applied causing the CI Sync Data Sync rules to be modified accordingly.

Importantly

Make sure you consciously override the setting against either your TEST or PROD environment (i.e. your TEST vs PROD sync jobs).

For more information on how to use TEST vs PROD Connection Settings please read Understanding the use of CI Sync Connection Settings.

Syncfish strongly recommend making changes for TEST environment/sync jobs first. Only modify PROD related settings after thoroughly validating the intended results in TEST.
