Convert Windows OS Version and Name format for InTune

Connector Applicability

Applies to Source Connectors

InTune

Applies to Destination Connectors

All

Assumptions

These instructions assume you have already setup a source connection in CI Sync for InTune using the CI Sync instructions here: or Add InTune to SaaS Agent.

Pre-Read

Syncfish recommend customers read the following documentation before changing the Connection Setting/s described below.

  1. Understanding the use of CI Sync Connection Settings

  2. Rule 11 - Windows Operating System (OS) Version Handling for InTune

Locating and Amending the Connection Setting in the CI Sync UI

  1. Navigate to the Settings page

  2. Under the Source Connections heading (list), locate your InTune connection.

  3. Click the Update link on the right hand side of the InTune connection.

  4. Scroll down and locate the Section Heading and view the Individual Settings.

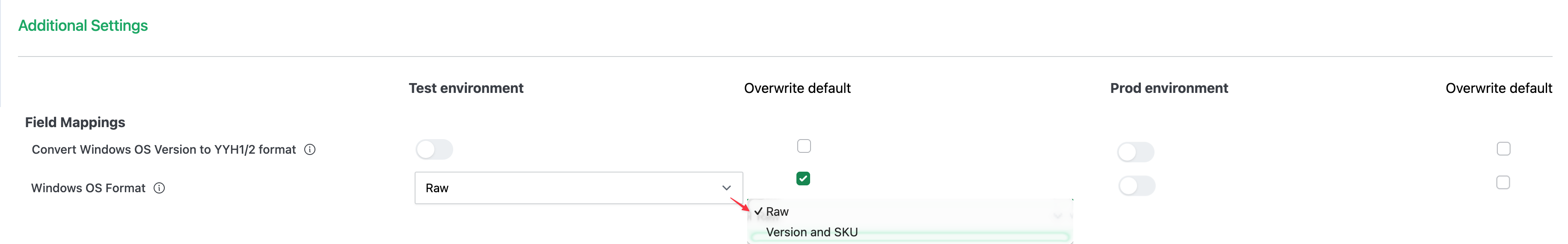

CleanShot 2026-01-27 at 10.32.50@2x-20260127-003349-20260210-054457.png

The screen shot is provided only as sample to assist when reading this page. The state of your own CI Sync UI will depend on whether you are starting from the CI Sync default position or if you have already amended one/more of the settings.

  1. Tick the Override default box/boxes and then use the sliders related to the individual settings. The following table elaborates any further information about these particular settings.

Setting

Type

Additional Notes

Convert Windows OS Version to YYH1/2 format

Slider

If not enabled, CI Sync will pass through the Windows OS value in it’s native format (i.e. a value such as 10.0.26200.7623).

If enabled, CI Sync will transform the the Major Version number from Intune is matched against a mapping table to return the YYH1/2 formatted version number for the operating system.
For example: given the Windows version 10.0.26200.7623, the main release number (the third value) “26200” is matched against:

  • 19042 → 20H2

  • 19043 → 21H1

  • 22000 → 21H2

  • 19044 → 21H2

  • 22621 → 22H2

  • 19045 → 22H2

  • 22631 → 23H2

  • 26100 → 24H2

  • 26200 → 25H2

In this example, CI Sync will persis 25H2 as the Windows Operating system value on the related CI.

Windows OS Format

Choicelist

By default, the "Windows OS Format” is set to “Raw” which synchronizes the value of the “Operating System” attribute from Intune. (e.g. “Windows”).

Changing the "Windows OS Format” to “Version and SKU” appends the major version (10 or 11) and the SKU (e.g. “Pro”, “Enterprise” etc). (e.g. “Windows 11 Pro”).

  1. After modify the settings, scroll to the bottom of the page, tick the “I consent…” checkbox and finally click the Save connection button.

  2. You can now run a sync job and the amended settings will be applied causing the CI Sync Data Sync rules to be modified accordingly.

Importantly

Make sure you consciously override the setting against either your TEST or PROD environment (i.e. your TEST vs PROD sync jobs).

For more information on how to use TEST vs PROD Connection Settings please read Understanding the use of CI Sync Connection Settings.

Syncfish strongly recommend making changes for TEST environment/sync jobs first. Only modify PROD related settings after thoroughly validating the intended results in TEST.
